641215-5

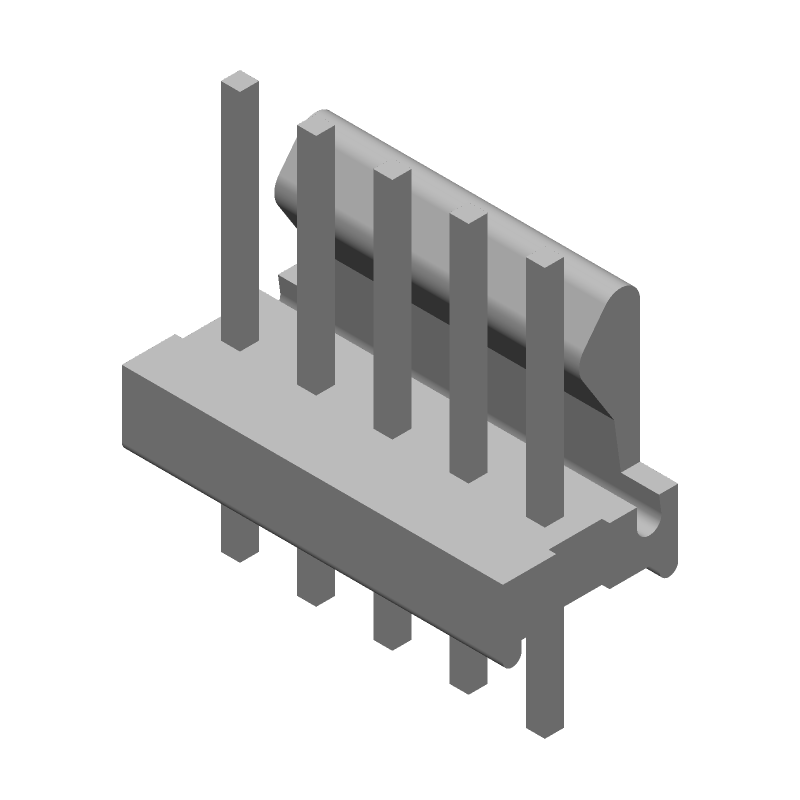

5 Pos 2.54mm Wire-to-Board Header, Male Pin, Solder, Thru-Hole

5-position, 1-row wire-to-board header with 2.54mm pitch. Features straight male pin contacts made of copper alloy with gold, tin, and matte plating. Rated for 5A current and 250V AC voltage, with a maximum operating temperature of 221°C. Through-hole mounting with a vertical PCB mounting orientation. UL94 V-0 flammability rating and RoHS compliant.

Voltage Rating250V

Current Rating5A

MountingThrough Hole

Quick Jump:

Technical Specifications

TE Connectivity 641215-5 technical specifications.

General

Approvals	CSA
Backwall/Post Interruptions	No (Without)
Color	Natural
Connector System	Wire-to-Board
Contact Current Rating	5A
Contact Gender	Male
Contact Material	Copper Alloy
Contact Mating Length	7.49mm
Contact Plating	Gold, Tin, Matte
Contact Post Length	3.56mm
Contact Retention	No (Without)
Contact Shape	Square
Contact Style	Straight
Contact Type	Male Pin
Current Rating	5A
Depth	5.71mm
Flammability Rating	UL94 V-0
Height	7.87mm
Housing Color	White
Length	12.7mm
Mating Alignment	No (Without)
Mating Retention	Yes (With)
Max Operating Temperature	221°C
Min Operating Temperature	-67°C
Max Voltage Rating (AC)	250V
Mount	Through Hole
Number of Contacts	5
Number of Positions	5
Number of Rows	1
Orientation	Straight
Package Quantity	1
Packaging	Bulk
PCB Mount Alignment	No (Without)
PCB Mount Retention	Without
PCB Mounting Orientation	Vertical
PCB Thickness	0.063inch
Pitch	2.54mm
Plating Thickness	0.76um
Radiation Hardening	No
RoHS Compliant	Yes
Sealable	No (Without)
Series	MTA-100
Strain Relief	No (Without)
Tail Length	3.56mm
Termination	Solder
Underplate Material	Nickel
Voltage Rating	250V
