Quad-channel digital isolator, 50 Mbps data rate, 2.5 kV isolation voltage. Features unidirectional channels, 35 ns propagation delay, and 3 ns pulse width distortion. Operates from a 2.7V to 5V supply voltage with a maximum operating temperature of 125°C. Packaged in a 16-SSOP, this lead-free and RoHS compliant component offers general-purpose isolation.
PackageSSOP
PolarityUnidirectional
Quick Jump:
Technical Specifications
Texas Instruments ISO7140CCDBQ technical specifications.
General
| Package/Case | SSOP |
| Channel Type | Unidirectional |
| Data Rate | 50Mbps |
| Isolated Power | No |
| Isolation Voltage | 2.5kV |
| Lead Free | Lead Free |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 150mW |
| Max Supply Voltage | 5V |
| Min Supply Voltage | 2.7V |
| Number of Channels | 4 |
| Operating Supply Current | 15.6mA |
| Package Quantity | 75 |
| Packaging | Rail/Tube |
| Polarity | Unidirectional |
| Propagation Delay | 35ns |
| Pulse Width Distortion (PWD) | 3ns |
| RoHS Compliant | Yes |
| Turn-On Delay Time | 23ns |
| Type | General Purpose |
| Weight | 0.004586oz |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments ISO7140CCDBQ Datasheet
Download the complete datasheet for Texas Instruments ISO7140CCDBQ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

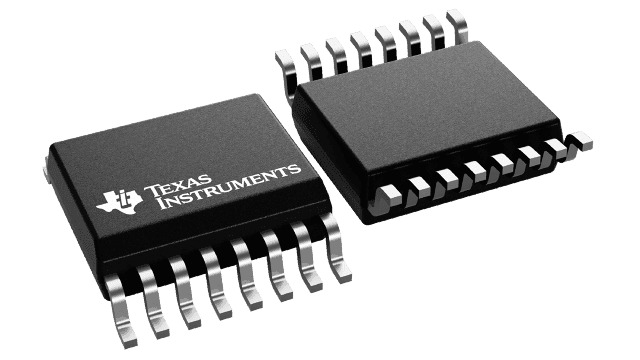

Product Images
