Ultra-miniature DPDT toggle switch with On-On circuit configuration. Features a standard round actuator with a 3.8mm length and process-sealed construction. Rated for 0.4VA (AC/DC) at 28V, with a contact current rating of 100mA. Through-hole mounting with PC pin termination. Operates within a temperature range of -25°C to 85°C and offers an electrical life of 100,000 cycles.
Current Rating100mA
MountingThrough Hole, PCB
Quick Jump:
Technical Specifications
NKK Switches G22AP technical specifications.
General
| Actuator Length | 3.8mm |
| Actuator Material | Nylon, Glass, Polyamide, Glass fibre |
| Actuator Type | Standard Round |
| Contact Current Rating | 100mA |
| Contact Material | Bronze, Gold |
| Contact Plating | Gold |
| Current Rating | 100mA |
| Depth | 4.5mm |
| Electrical Life | 100000Cycles |
| Illumination Type | Non-Illuminated, Illuminated |
| Lead Free | Lead Free |
| Length | 7mm |
| Max Current Rating | 100mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Max Voltage Rating (AC) | 28V |
| Max Voltage Rating (DC) | 28V |
| Mount | Through Hole, PCB |
| Number of Positions | 2 |
| Orientation | Vertical |
| Package Quantity | 1 |
| Packaging | Tray |
| RoHS Compliant | Yes |
| Series | G |
| Switch Function | On-On |
| Switching Voltage | 28V |
| Termination | PC Pin |
| Throw Configuration | DPDT |
| Voltage Rating (AC) | 28V |
| DC Rated Voltage | 28V |
Compliance
| RoHS | Compliant |
Datasheet
NKK Switches G22AP Datasheet
Download the complete datasheet for NKK Switches G22AP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

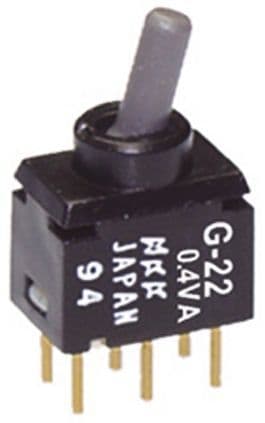

Product Images
