D3086-98

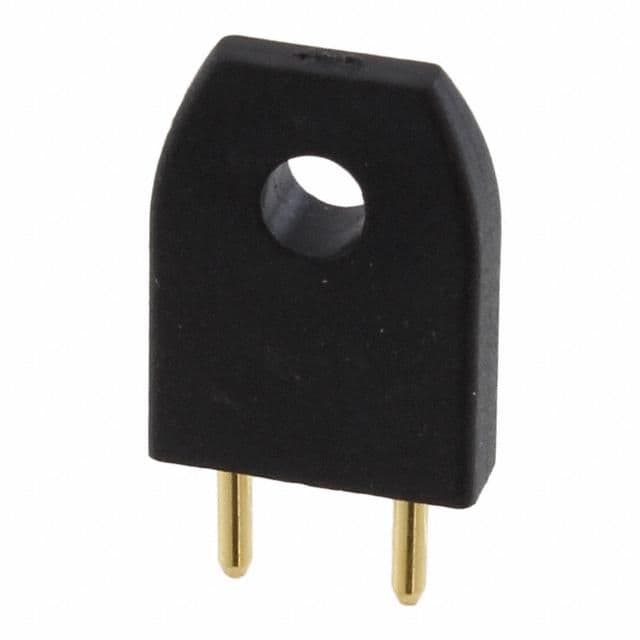

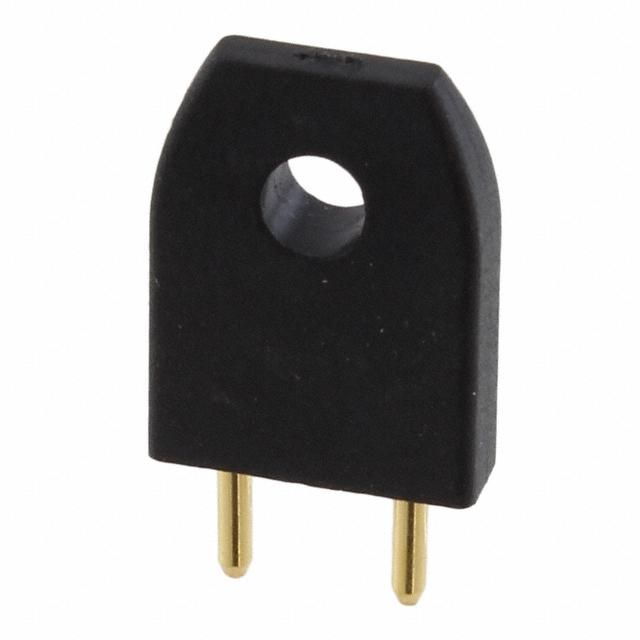

2-Pos 5.08mm Pitch Male Shorting Link, 10A, Gold Plated Brass

2-way PCB shorting link with a 5.08mm pitch, featuring straight orientation and a male gender. Constructed with a PBT insulation material and brass contacts with gold plating, this component offers a 10A current rating. The black PBT housing has a UL94 V-0 flammability rating, ensuring safety and durability.

Current Rating10A

Quick Jump:

Technical Specifications

Harwin D3086-98 technical specifications.

General

Body Length	7mm
Color	Black
Contact Material	Brass
Contact Plating	Gold
Current Rating	10A
Depth	3.2mm
Flammability Rating	UL94 V-0
Gender	Male
Housing Color	Black
Insulation	Insulated
Insulation Material	PBT
Length	9.5mm
Material	PBT, Polybutylene
Max Current Rating	10A
Number of Contacts	2
Number of Positions	2
Number of Rows	1
Orientation	Straight
Package Quantity	100
Packaging	Bulk
Pitch	5.08mm
Plating	Gold
Radiation Hardening	No
Reach SVHC Compliant	No
RoHS Compliant	Yes
Series	D308
Width	12.7mm
