Technical Specifications
Omron A22E-M-12 technical specifications.
General
| Color | Red |
| Current Rating | 10A |
| Electrical Life | 300000Cycles |
| Head Diameter | 40mm |
| Length | 86.7mm |
| Life (Hours) | 300000Hour |
| Max Operating Temperature | 70°C |
| Mechanical Life | 300000Cycles |
| Min Operating Temperature | -20°C |
| Mount | Panel, Front |
| Operating Supply Voltage | 440V |
| Package Quantity | 1 |
| Packaging | Bulk |
| Ratings | IP65, Water Resistant, Dust Tight |
| RoHS Compliant | Yes |
| Series | A22E |
| Supply Current | 10A |
| Termination | Screw |
| Throw Configuration | DPST, SPST, 3PST |
| Voltage Rating (AC) | 110V |
| DC Rated Voltage | 24V |
Compliance
| RoHS | Compliant |
Datasheet
Omron A22E-M-12 Datasheet
Download the complete datasheet for Omron A22E-M-12 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

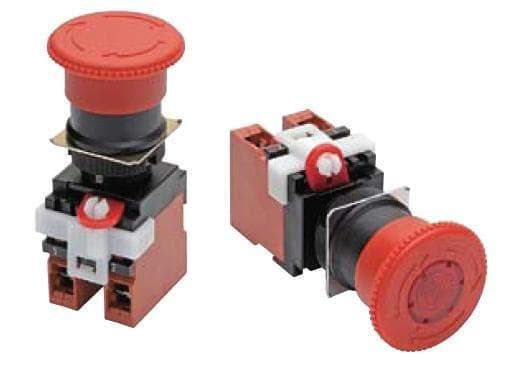

Product Images
