12-channel power sequencing and system health monitoring IC, featuring 12 voltage monitoring channels. Operates from a 3V to 3.6V supply voltage with a typical operating supply current of 8mA and a maximum of 55mA. Offers push-pull output type and includes a watchdog timer. Packaged in a 64-VQFN surface mount configuration, this component operates within a temperature range of -40°C to 110°C and is RoHS compliant.
PackageVQFN
Current55mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments UCD90120RGCT technical specifications.
General
| Package/Case | VQFN |
| Lead Free | Lead Free |
| Max Operating Temperature | 110°C |
| Min Operating Temperature | -40°C |
| Max Supply Current | 55mA |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Voltages Monitored | 12 |
| Operating Supply Current | 8mA |
| Operating Supply Voltage | 3.3V |
| Output Type | PUSH-PULL |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Quiescent Current | 50mA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reset | Active High/Active Low |
| Reset Timeout | 2us |
| RoHS Compliant | Yes |
| Series | UCD90120 |
| Supply Current | 55mA |
| Type | Sequencer |
| Watchdog Timer | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments UCD90120RGCT Datasheet
Download the complete datasheet for Texas Instruments UCD90120RGCT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

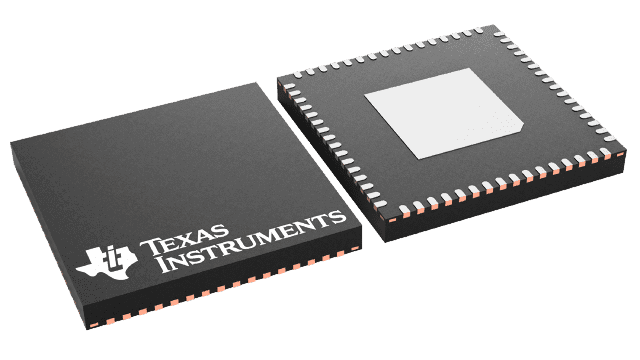

Product Images
