Automotive three-channel linear LED driver IC featuring analog and PWM dimming. Delivers up to 450mA output current per channel with a maximum output voltage of 75V. Operates from a minimum input voltage of 5V up to 40V, with a maximum supply current of 850uA. Housed in a 16-HTSSOP package, this surface mount component offers a wide operating temperature range from -40°C to 125°C. AEC-Q100 qualified and RoHS compliant.
PackageHTSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TPS92630QPWPRQ1 technical specifications.
General
| Package/Case | HTSSOP |
| Dimming | Analog, PWM |
| Height | 1.2mm |
| Lead Free | Lead Free |
| Length | 5mm |
| Min Input Voltage | 5V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 150mA |
| Max Output Voltage | 40V |
| Max Supply Current | 850uA |
| Max Supply Voltage | 40V |
| Mount | Surface Mount |
| Number of Channels | 3 |
| Number of Outputs | 3 |
| Output Current | 150mA |
| Output Current per Channel | 450mA |
| Output Voltage | 75V |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Quiescent Current | 600uA |
| RoHS Compliant | Yes |
| Series | Automotive, AEC-Q100 |
| Thickness | 1mm |
| Width | 4.4mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TPS92630QPWPRQ1 Datasheet
Download the complete datasheet for Texas Instruments TPS92630QPWPRQ1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

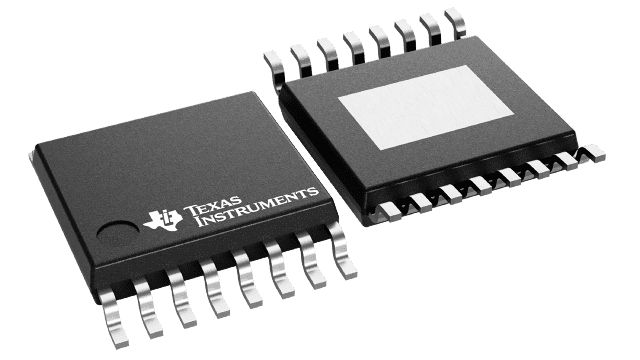

Product Images
