Texas Instruments
TPA3200D1DCPR
20-W Mono Class-D Audio Power Amplifier with I2S Input (TPA3200) 44-HTSSOP -40 to 85
PackageHTSSOP
Current15mA
MountingSurface Mount
Power12.8W
Quick Jump:
Technical Specifications
Texas Instruments TPA3200D1DCPR technical specifications.
General
| Package/Case | HTSSOP |
| Gain | 23.6dB |
| Lead Free | Contains Lead |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Max Output Power | 20W |
| Max Power Dissipation | 4.89W |
| Max Supply Voltage | 18V |
| Min Supply Voltage | 8V |
| Mount | Surface Mount |
| Operating Supply Voltage | 15V |
| Output Power | 12.8W |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Power Dissipation | 4.89W |
| Power Supply Rejection Ratio (PSRR) | 73dB |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Supply Current | 15mA |
| Supply Type | Single |
| Voltage Gain | 23.6dB |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TPA3200D1DCPR Datasheet
Download the complete datasheet for Texas Instruments TPA3200D1DCPR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

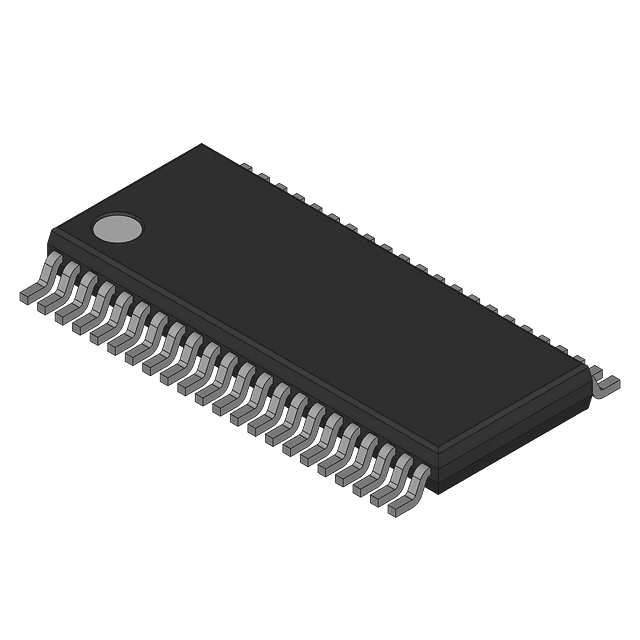

Product Images
