Precision Series Sub-Band Gap Voltage Reference, a single-channel integrated circuit, offers a stable 1V reference voltage with a 0.35% tolerance. This power management IC operates from a 2V to 20V input, drawing a quiescent current of 150µA, and can source up to 4mA. Packaged in a compact TSOT with dimensions of 2.9mm x 1.6mm x 0.87mm, it functions across an industrial temperature range of -40°C to 125°C. Supplied on tape and reel, this RoHS compliant component is ideal for applications requiring reliable voltage regulation.
PackageTSOT
Quick Jump:
Technical Specifications
Analog Devices ADR130BUJZ-R2 technical specifications.
General
| Package/Case | TSOT |
| Height | 0.87mm |
| Length | 2.9mm |
| Max Input Voltage | 20V |
| Min Input Voltage | 2V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 4mA |
| Max Output Voltage | 1.004V |
| Min Output Voltage | 1V |
| Number of Channels | 1 |
| Operating Supply Current | 150uA |
| Output Current | 4mA |
| Output Voltage | 500mV |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Quiescent Current | 150uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reference Type | Series, Programmable |
| Reference Voltage | 1V |
| RoHS Compliant | Yes |
| Tolerance | 0.35% |
| Width | 1.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices ADR130BUJZ-R2 Datasheet
Download the complete datasheet for Analog Devices ADR130BUJZ-R2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

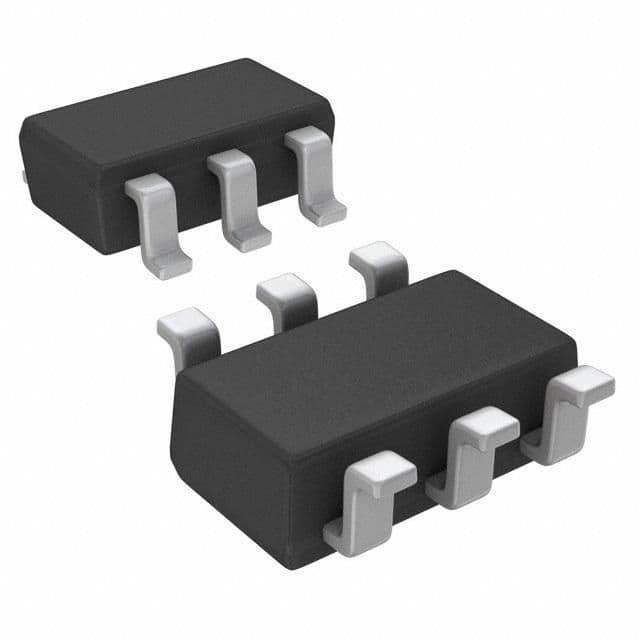

Product Images
