Texas Instruments
PT6643M
2A SWITCHING REGULATOR, 600kHz SWITCHING FREQ-MAX, SMA14, ROHS COMPLIANT, SIP-14
PackageModule
MountingThrough Hole
Power24W
Quick Jump:
Technical Specifications
Texas Instruments PT6643M technical specifications.
General
| Package/Case | Module |
| Efficiency | 84% |
| Lead Free | Lead Free |
| Length | 43.18mm |
| Max Input Voltage | 18V |
| Min Input Voltage | 8V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 2A |
| Max Power Dissipation | 24W |
| Mount | Through Hole |
| Number of Outputs | 1 |
| Output Current | 2A |
| Output Power | 24W |
| Output Voltage | -12V |
| Package Quantity | 12 |
| Packaging | Tray |
| RoHS Compliant | Yes |
| Series | PT6640 |
| Voltage - Output 1 | -12V |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments PT6643M Datasheet
Download the complete datasheet for Texas Instruments PT6643M to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

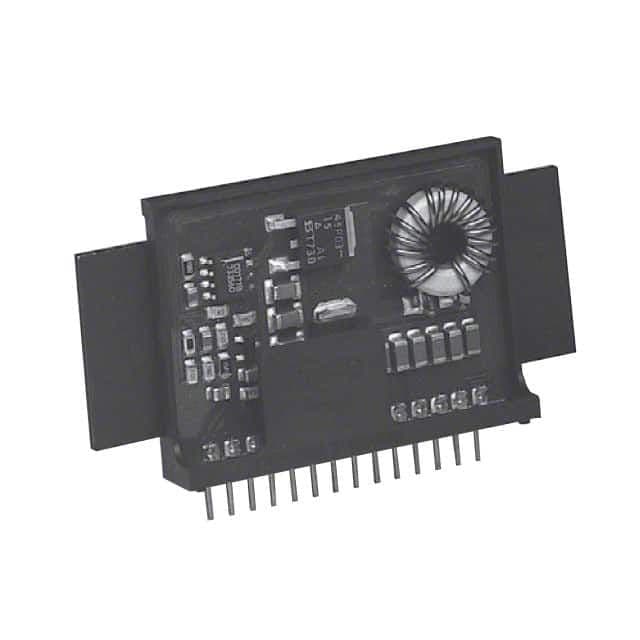

Product Images
