DC-IN 1-CH Optocoupler with Phototransistor output, featuring 5kV isolation voltage and 50kHz bandwidth. This surface mount component offers a 200% current transfer ratio, 50mA maximum collector current, and 20mA forward current. Operating temperature range is -40°C to 85°C, with a 400mV collector-emitter saturation voltage. Packaged in tape and reel, this RoHS compliant device is designed for general optoelectronic isolation applications.
PackageSMD/SMT
MountingSurface Mount
Power145mW
Quick Jump:
Technical Specifications
Onsemi FOD2741BSDV technical specifications.
General
| Bandwidth | 50kHz |
| Package/Case | SMD/SMT |
| Collector Emitter Breakdown Voltage | 70V |
| Collector Emitter Saturation Voltage | 400mV |
| Collector Emitter Voltage (VCEO) | 400mV |
| Collector-emitter Voltage-Max | 400mV |
| Current Transfer Ratio | 200% |
| Forward Current | 20mA |
| Height | 3.94mm |
| Input Current | 10mA |
| Input Type | DC |
| Isolation Voltage | 5kV |
| Isolation Voltage-Max | 5kV |
| Lead Free | Lead Free |
| Length | 9.91mm |
| Max Collector Current | 50mA |
| Max Input Current | 20mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Voltage | 30V |
| Max Power Dissipation | 145mW |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Output Current per Channel | 50mA |
| Output Type | Phototransistor |
| Output Voltage | 70V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Power Dissipation | 145mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reference Voltage | 2.495V |
| RoHS Compliant | Yes |
| Weight | 0.72g |
| Width | 6.86mm |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi FOD2741BSDV Datasheet
Download the complete datasheet for Onsemi FOD2741BSDV to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

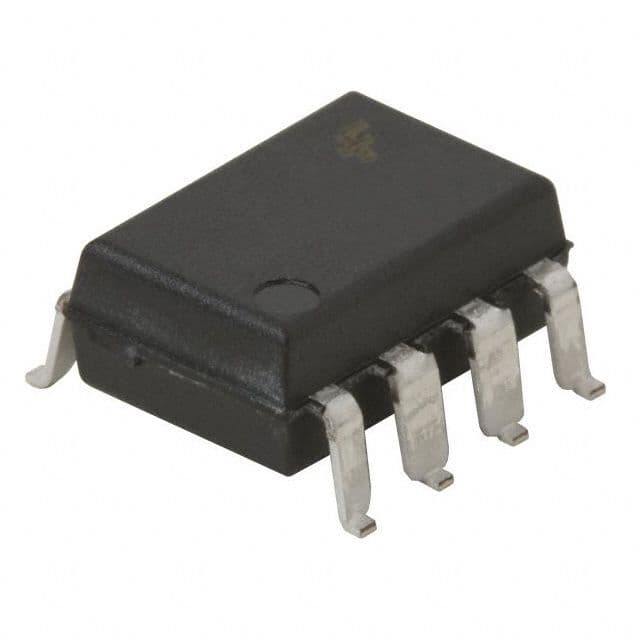

Product Images
