Technical Specifications
Onsemi FAN5626LX technical specifications.
General
| Current Rating | 30mA |
| Lead Free | Lead Free |
| Max Input Voltage | 5.5V |
| Min Input Voltage | 2.7V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Voltage | 5V |
| Max Supply Current | 1.2mA |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Number of Outputs | 6 |
| Number of Segments | 6 |
| Output Current | 30mA |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Power Dissipation | 132mW |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Weight | 0.026g |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi FAN5626LX Datasheet
Download the complete datasheet for Onsemi FAN5626LX to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

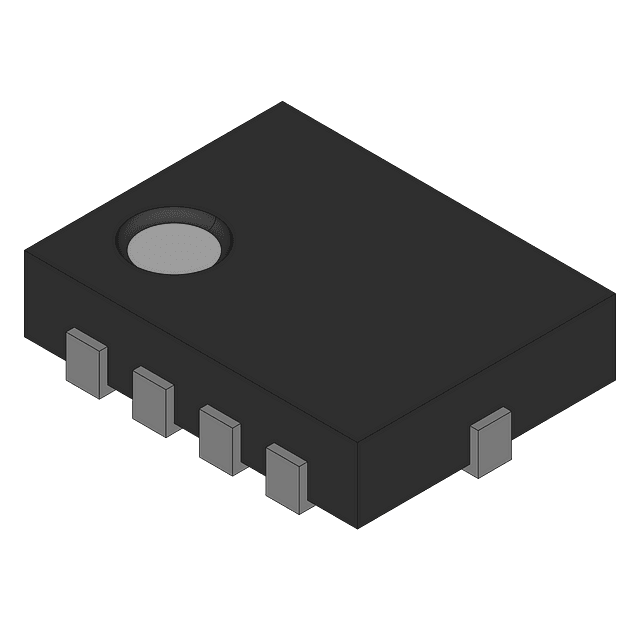

Product Images
