Illuminated pushbutton switch featuring a 30mm red head diameter and DPST-NC throw configuration. Rated for 440VAC and 10A supply current, this panel-mount switch offers 300,000 cycles of electrical and mechanical life. It operates within a temperature range of -20°C to 70°C and boasts IP65, water-resistant, and dust-tight ratings. Termination is via screw, and the unit is RoHS compliant.
Current10A
Current Rating10A
MountingPanel, Front
Quick Jump:
Technical Specifications
Omron A22E-S-02 technical specifications.
General
| Color | Red |
| Current Rating | 10A |
| Electrical Life | 300000Cycles |
| Head Diameter | 30mm |
| Lead Free | Lead Free |
| Length | 54.7mm |
| Max Operating Temperature | 70°C |
| Mechanical Life | 300000Cycles |
| Min Operating Temperature | -20°C |
| Mount | Panel, Front |
| Operating Supply Voltage | 440V |
| Package Quantity | 1 |
| Packaging | Bulk |
| Ratings | IP65, Water Resistant, Dust Tight |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | A22E |
| Supply Current | 10A |
| Switch Function | On-Off |
| Termination | Screw |
| Throw Configuration | DPST |
| Voltage Rating (AC) | 110V |
| DC Rated Voltage | 24V |
| Width | 34mm |
Compliance
| RoHS | Compliant |
Datasheet
Omron A22E-S-02 Datasheet
Download the complete datasheet for Omron A22E-S-02 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

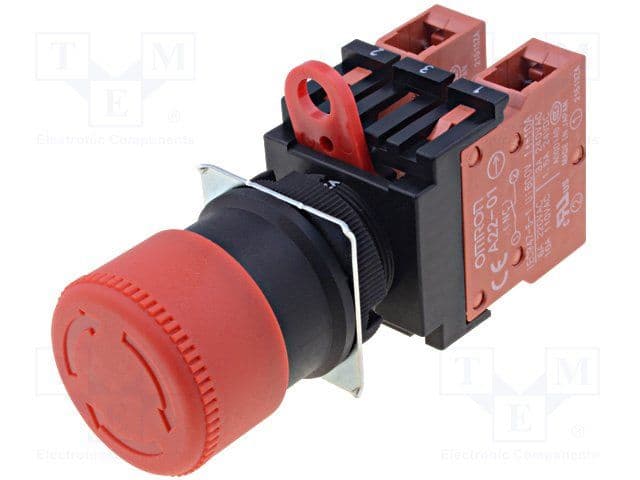

Product Images
