3A step-down converter, featuring DCS-Control™ technology, operates from a 3V to 17V input range with a 3A maximum output current. This integrated circuit offers an adjustable output voltage from 900mV up to 6V. Designed for surface mounting, it is housed in a compact 3x3mm 16-VQFN package with a low profile of 0.95mm. The device boasts a quiescent current of 17µA and a wide operating temperature range of -40°C to 125°C, with RoHS compliance.
PackageQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TPS62130ARGTT technical specifications.
General
| Package/Case | QFN |
| Height | 0.95mm |
| Lead Free | Lead Free |
| Length | 3.15mm |
| Max Input Voltage | 17V |
| Min Input Voltage | 3V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 3A |
| Max Output Voltage | 6V |
| Min Output Voltage | 900mV |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Operating Supply Voltage | 17V |
| Output Configuration | Positive |
| Output Current | 3A |
| Output Type | Adjustable |
| Output Voltage | 6V |
| Package Quantity | 250 |
| Packaging | Tape and Reel |
| Quiescent Current | 17uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | DCS-Control™ |
| Synchronous Rectifier | Yes |
| Width | 3.15mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TPS62130ARGTT Datasheet
Download the complete datasheet for Texas Instruments TPS62130ARGTT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

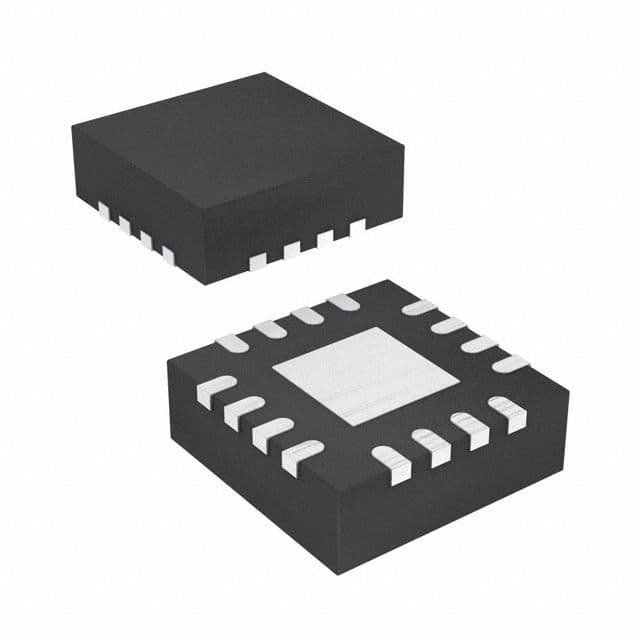

Product Images
