Surface mount optoelectronic device featuring 5kV isolation voltage and a 0.75% current transfer ratio. This single-channel, single-circuit component operates from -55°C to 85°C with a maximum power dissipation of 60mW. It supports DC input with a forward current of 25mA and includes tin, matte contact plating. Approvals include UL, CSA, and VDE, with RoHS compliance.
PackageSMD/SMT
MountingSurface Mount
Power60mW
Quick Jump:
Technical Specifications
Broadcom HCNR200-300E technical specifications.
General
| Approvals | UL, CSA, VDE |
| Package/Case | SMD/SMT |
| Contact Plating | Tin, Matte |
| Current Transfer Ratio | 0.75% |
| Forward Current | 25mA |
| Input Current | 20mA |
| Input Type | DC |
| Isolation Voltage | 5kV |
| Lead Free | Lead Free |
| Max Input Current | 25mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 60mW |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Package Quantity | 42 |
| Packaging | Rail/Tube |
| Power Dissipation | 60mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Breakdown Voltage | 2.5V |
| Reverse Voltage (DC) | 2.5V |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Broadcom HCNR200-300E Datasheet
Download the complete datasheet for Broadcom HCNR200-300E to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

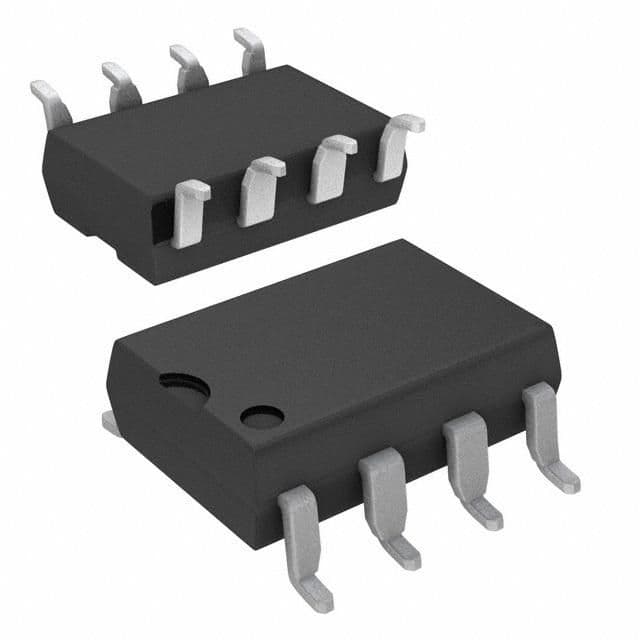

Product Images
