Eight-channel, 12-bit analog-to-digital converter (ADC) with a sampling rate of 80 MS/s. Features differential inputs, LVDS serial interface, and a 1.8V operating supply voltage. Achieves 0.8 LSB differential nonlinearity and 1 LSB integral nonlinearity. Offers 71.5 dB signal-to-noise ratio and 85 dB spurious-free dynamic range. Packaged in HTQFP with gold contact plating, operating from -40°C to 85°C.
PackageHTQFP
Power376mW
Quick Jump:
Technical Specifications
Texas Instruments ADS5292IPFPT technical specifications.
General
| Package/Case | HTQFP |
| Contact Plating | Gold |
| Conversion Rate | 80MS/s |
| Differential Nonlinearity | 0.8LSB |
| Input Type | DIFFERENTIAL |
| Integral Nonlinearity (INL) | 1LSB |
| Interface | LVDS, Serial |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage (DC) | 1.9V |
| Min Supply Voltage (DC) | 1.7V |
| Max Supply Voltage | 1.9V |
| Min Supply Voltage | 1.7V |
| Number of A/D Converters | 8 |
| Number of Analog Inputs | 8 |
| Number of Bits | 12 |
| Number of Channels | 8 |
| Number of Converters | 8 |
| Number of Elements | 8 |
| Number of Inputs | 8 |
| Operating Supply Voltage | 1.8V |
| Package Quantity | 250 |
| Packaging | Tape and Reel |
| Power Consumption | 376mW |
| Resolution | 12b |
| RoHS Compliant | Yes |
| Sampling Rate | 80000000S/s |
| Signal to Noise Ratio (SNR) | 71.5dB |
| Spurious-free dynamic range (SFDR) | 85dB |
| Supply Type | Analog, Digital |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments ADS5292IPFPT Datasheet
Download the complete datasheet for Texas Instruments ADS5292IPFPT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

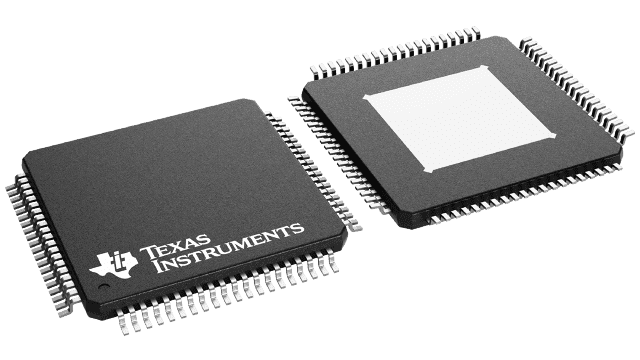

Product Images
