This surface mount, MSOP-packaged power management IC monitors a single voltage input, providing a reset output that is active high or active low. It features a reset delay time of 280ms and a reset timeout of 160ms, with reset threshold voltages ranging from 4.25V to 4.5V. Operating within a supply voltage range of 1V to 5.5V, this component has a maximum power dissipation of 900mW and a typical supply current of 250uA. The operating temperature range is from -40°C to 85°C.
PackageMSOP
Current250uA
MountingSurface Mount
Power900mW
Quick Jump:
Technical Specifications
Analog Devices ADM708ARM technical specifications.
General
| Package/Case | MSOP |
| Lead Free | Contains Lead |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 900mW |
| Max Reset Threshold Voltage | 4.5V |
| Min Reset Threshold Voltage | 4.25V |
| Max Supply Current | 250uA |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 1V |
| Mount | Surface Mount |
| Number of Elements | 1 |
| Number of Monitored Inputs | 1 |
| Number of Voltages Monitored | 1 |
| Operating Supply Current | 250uA |
| Overvoltage Threshold | 4.5V |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Power Dissipation | 900mW |
| Radiation Hardening | No |
| Reset | Active High/Active Low |
| Reset Delay Time | 280ms |
| Reset Timeout | 160ms |
| RoHS Compliant | No |
| Supply Current | 250uA |
| Threshold Voltage | 4.4V |
| Type | Simple Reset/Power-On Reset |
| Undervoltage Threshold | 4.25V |
| Watchdog Timer | No |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Analog Devices ADM708ARM Datasheet
Download the complete datasheet for Analog Devices ADM708ARM to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

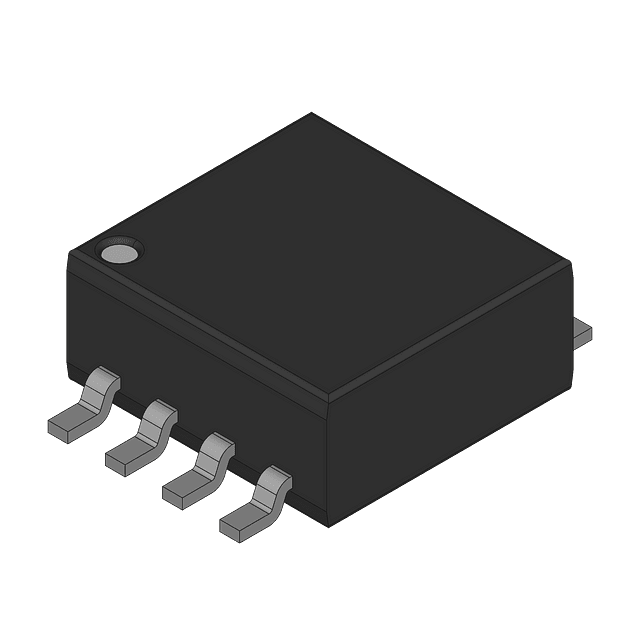

Product Images
