Nano-power management DC/DC controller and regulator featuring ultra-low power boost conversion for energy harvesting applications. With a minimum input voltage of 130mV and a maximum supply voltage of 5.25V, this integrated circuit operates efficiently at 330nA supply current. It delivers up to 200mA output current and is housed in a compact 3mm x 3mm x 0.9mm QFN package with gold contact plating. Operating across a wide temperature range from -40°C to 85°C, this RoHS compliant component is supplied on tape and reel.
PackageQFN
Quick Jump:
Technical Specifications
Texas Instruments BQ25504RGTR technical specifications.
General
| Package/Case | QFN |
| Contact Plating | Gold |
| Height | 0.9mm |
| Lead Free | Lead Free |
| Length | 3mm |
| Min Input Voltage | 130mV |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.25V |
| Min Supply Voltage | 2.5V |
| Operating Supply Current | 330nA |
| Operating Supply Voltage | 3V |
| Output Current | 200mA |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments BQ25504RGTR Datasheet
Download the complete datasheet for Texas Instruments BQ25504RGTR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

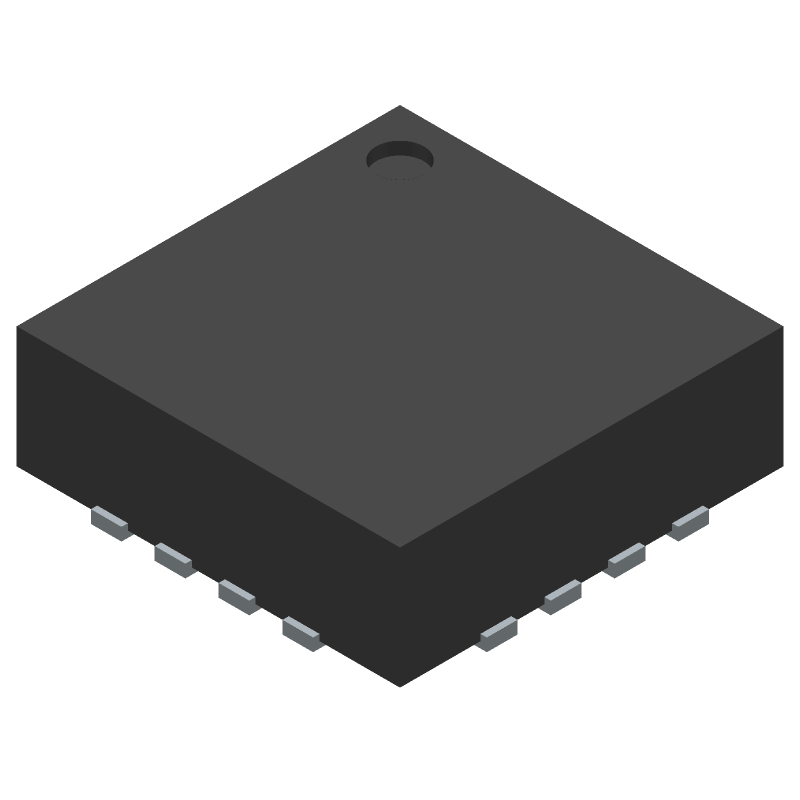

Product Images
